Description
Important Product Update: The Jag-3 air switch has been discontinued. You will receive an updated retrofit replacement model. Please note that hole size modification may be necessary in your control panel, as the Jag-3 required a 3/8″ opening while current models use a 9/16″ opening. Alternatively, you can install the switch internally within the control panel. Most control panels come with pre-drilled 9/16″ openings.

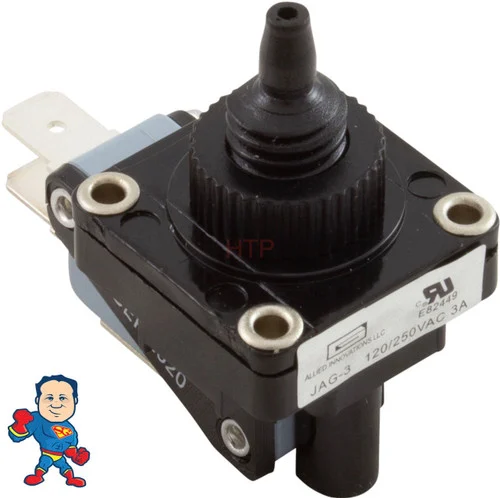

This Len Gordon Jag-3 momentary air switch features a 3 amp rating and is typically utilized to trigger a coil on stepper-style switches. The positioning distance between this switch and the air button varies based on which air button model is selected. The momentary design requires pairing with a sequencer or relay for operation. Compatible with most Len Gordon relay systems.
Operating Distances for Len Gordon Air Button Models:4 Air Button: Maximum Operating Distance 75’10 Air Button: Maximum Operating Distance 150’15 Air Button: Maximum Operating Distance 150′
| Function | Momentary |
| Air Switch Type | Single Pole Double Throw (spdt) |
| Model | 860010-3 |
