Description
Overview

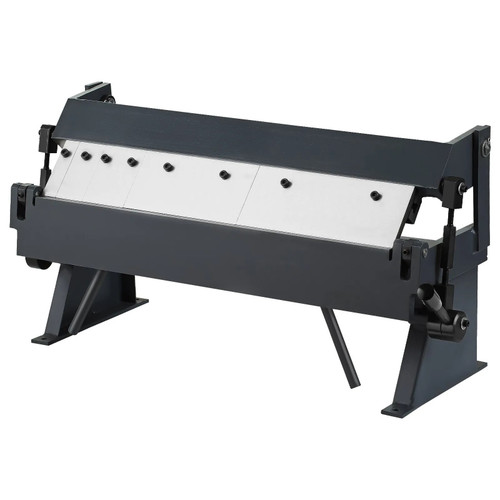

This portable box and pan brake is designed for precise sheet metal bending with a 24-inch width capacity. Featuring 10 segmented modules (1″, 2″, 3″, 4″) and 5 adjustable fingers, it allows intricate bends for channels, truck beds, mudguards, and more. Built from Q236 heavy-duty steel, it ensures durability and long-term performance.
Key Features
-
Bending Width: 24″ (610 mm)
-
Material Capacity: 20-gauge low carbon steel, 14-gauge aluminum
-
Angle Range: 0–135° adjustable
-
Segmented Modules: 10 pieces (1″ ×2, 2″ ×4, 3″ ×2, 4″ ×2)
-
Construction: Q236 heavy-duty steel, 0.39″ thick, hardness up to 21 HRC
-
Portable Design: Compact, bench-mountable, screw-in installation holes
-
Applications: Stainless steel, copper, aluminum, iron, galvanized sheets
Applications
-
Reinforcing floor channels
-
Corrugated pickup truck beds
-
Truck headboards
-
Metal mudguards
-
Workshop & factory sheet metal bending
