Description

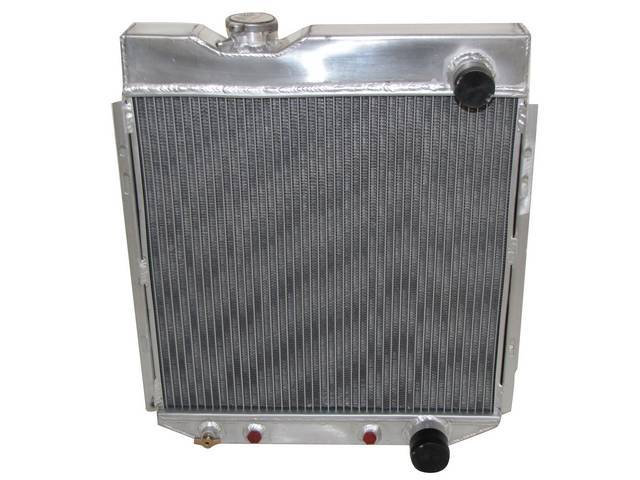

2 row, 3/4 tubes, 84 cores, 14 fins per inch, 17 1/4 core width x 16 1/2 core height x 1 3/4 core thickness, inlet 1 1/2 RH, outlet 1 3/4 RH, 6 trans cooler, front mount.US-made, good to 350 HP, high density core.all aluminum, higher fin count, 100% TIG welded no epoxy, limited lifetime manufacturer warranty.
See 8149-1A for fan shroud brackets and 8006-1K, 8006-1AK for mounting hardware options.
Note: Thicker than original radiators may require a shorter fan spacer.Check for a minimum of 1/2 clearance (1 preferred) between the fan and radiator core BEFORE you start your engine!The use of a different length of fan spacer can easily remedy this.Thicker than original radiators may also need modifications to the saddle mounts to fit the thicker tanks and for the location of the drain cocks.67s using 24 extra cooling radiators, brass or aluminum, will require the use of 68-70 lower mounts (8052-1A, 1B, 1C) for a proper mounting.
Aluminum radiators and heater cores require 50/50 mix coolant replacement at least every 24 months or 30,000 miles to maintain the necessary silicate levels that prevent corrosion in aluminum.
**Warranty info: The manufacturer, Champion Cooling Systems, requests all warranty claims be directed to them.You will need proof of purchase (NPD invoice) to register the warranty on their website and then you will be able to access warranty service.**
Ford Mustang Years:
1965 (65), 1966 (66)
Above years shown are used for searches and are not application listings.
Ford Falcon and Ranchero Years:
1960 (60), 1961 (61), 1962 (62), 1963 (63), 1964 (64), 1965 (65)
Above years shown are used for searches and are not application listings.
NPD Part Number : 8005-1AC2
Manufacturer Reference ‘s:EC259, C3DZ-8005-K
