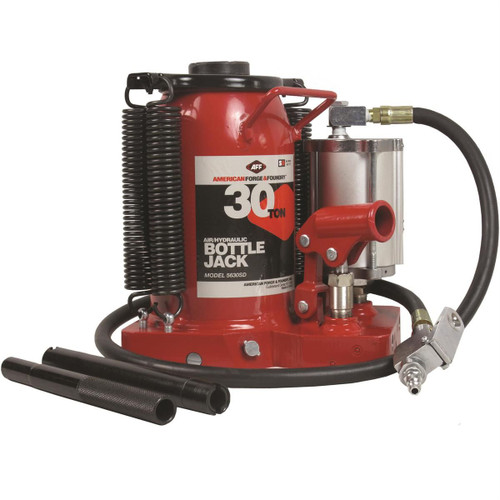

Description
Features and Benefits:
- Color: Red/Black
- Product Type: Bottle Jack
- Capacity (T): 30 Ton
- Power Type: Hydraulic
- Operation Type: Air/Manual
- Minimum Height (in.): 10.94″
- Maximum Height (in.): 20.59″
- Ram Lift (in.): 6.10″
- Extension (in.): 3.9″
- Saddle Diameter: 1.8″
- Base Length (in.): 9.65″
- Base Width (in.): 7.09″
- Handle Length (in.): 16.5″
- Number of Handle Pieces: 2
- Oil Reservoir Assembly: Fully Welded – Collar & Base
- Base Type: Machined Steel
- Release Type: Cross Head Valve
- Working Air Pressure: 90-150 PSI
- Duty Level: Super Duty
- Weight (lb.): 58.3 Lbs.
- Certification: ASME/PASE 2019
- The AFF Heavy-Duty bottle jacks are heat treated in critical stress areas to ensure long life and performance. They are ideal for use in automotive, truck, farming, mining, and much more.
- Fully welded at top nut and base on oil reservoir for ultimate leak free usage
- Precision machined hardened 1 1/8” steel base for reliable strength.
- Made with centered pumps and rams with heat treated pistons
- Saddles are made of machine hardened steel for unsurpassed strength.
- Built-in bypass system prevents accidental overload and provides added operator safety.
- Longer wear life due to internally machined oil passages, smooth bearing surfaces and tighter tolerances
- Operating pressure at 90-180 PSI
- Aluminum air motor design delivers fast, consistent, and reliable operation.
- Dual cylinder return springs.
- Comes with carrying handle.
- American Forge & Foundryi12s Bottle Jacks include some of the most advanced features available today and provide countless solutions even in the toughest working conditions. Choose from our Heavy-Duty series for standard use or from our Super Duty series for more rigorous applications.
