Description

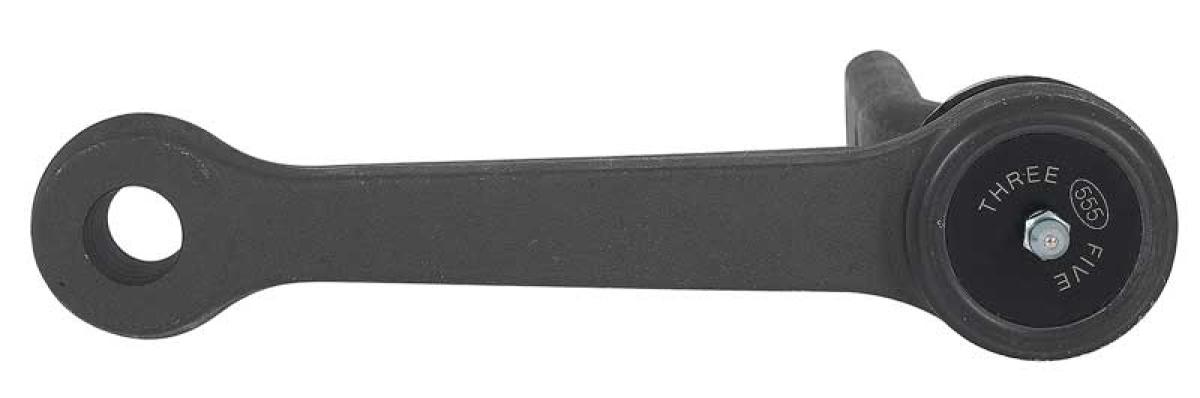

This pivoting support for the steering linkage appears on older recirculating ball-type steering systems (pre-rack & pinion) and functions like the pitman arm in a rack and pinion system. This cast-iron steering idler arm features two holes for mounting to the frame, a rubber boot on the mounting section of the idler arm and features an eyelet or opening on the end that attaches to the center drag link. Each assembly inclides: (1) Arm, (1) Bracket, (1) Dust Boot, (1) Castle Nut, (1) Cotter Pin, (1) Grease Fitting.
Product Specifications
- Bracket Holes: 2
- Length Center to Center: 5.931
- Hardware Included: No
- Ball Design: No
- Arm Type: Bent
- Arm Fixture: Hole
- Bracket Fixture: Stud
- Arm Fixture Stud Thread/Hole Inside Diameter: 0.557
- Greasable: Yes
Buick Applications
- 1975 – 1975 Buick Apollo Base
- 1975 – 1975 Buick Apollo SR
- 1976 – 1979 Buick Skylark S
- 1975 – 1979 Buick Skylark Base
- 1978 – 1979 Buick Skylark Custom
- 1978 – 1978 Buick Skylark Sport
- 1975 – 1977 Buick Skylark SR
Cadillac Applications
- 1976 – 1979 Cadillac Seville
Chevrolet Applications
- 1970 – 1980 Chevrolet Camaro Base
- 1981 – 1981 Chevrolet Camaro Sport
- 1970 – 1975 Chevrolet Camaro RS
- 1973 – 1978 Chevrolet Camaro LT
- 1979 – 1981 Chevrolet Camaro Berlinetta
- 1976 – 1978 Chevrolet Camaro LT Rally Sport
- 1976 – 1980 Chevrolet Camaro Rally Sport
- 1970 – 1981 Chevrolet Camaro Z28
- 1970 – 1972 Chevrolet Camaro SS
- 1975 – 1977 Chevrolet Nova Base
- 1975 – 1975 Chevrolet Nova Custom
- 1976 – 1977 Chevrolet Nova Concours
- 1976 – 1976 Chevrolet Nova SS
- 1975 – 1977 Chevrolet Nova Police
- 1977 – 1977 Chevrolet Nova Rally
- 1975 – 1975 Chevrolet Nova LN
- 1975 – 1979 Chevrolet Nova
Oldsmobile Applications
- 1976 – 1978 Oldsmobile Omega SX
- 1975 – 1979 Oldsmobile Omega Base
- 1977 – 1977 Oldsmobile Omega Deluxe
- 1975 – 1975 Oldsmobile Omega Salon
- 1976 – 1979 Oldsmobile Omega Brougham
- 1978 – 1979 Oldsmobile Omega Brougham LS
- 1976 – 1977 Oldsmobile Omega F85
Pontiac Applications
- 1970 – 1981 Pontiac Firebird Base
- 1970 – 1981 Pontiac Firebird Esprit
- 1970 – 1981 Pontiac Firebird Formula
- 1970 – 1981 Pontiac Firebird Trans Am
- 1971 – 1971 Pontiac GTO
- 1977 – 1979 Pontiac Phoenix
- 1979 – 1979 Pontiac Phoenix Base
- 1979 – 1979 Pontiac Phoenix SJ
- 1979 – 1979 Pontiac Phoenix LJ
- 1975 – 1975 Pontiac Ventura S
- 1975 – 1976 Pontiac Ventura Base
- 1975 – 1975 Pontiac Ventura Custom
- 1975 – 1976 Pontiac Ventura SJ
- 1975 – 1977 Pontiac Ventura
