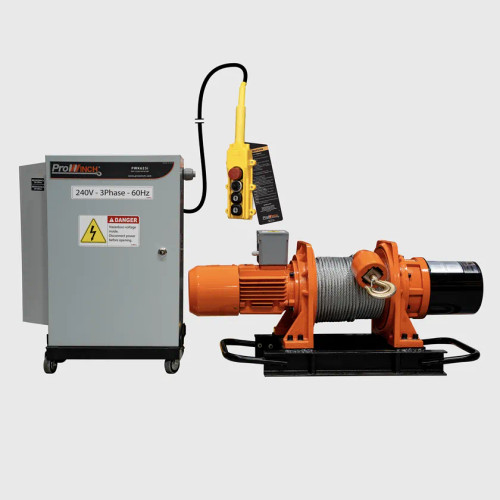

Description
Key Points:
| MRC Rated Capacity | 1375 lb / 625 kg |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz |
| Speed (f/m) / min | 42 ft / 13 m |
| Number of Speeds | 1 Speed – Optional Variable Speed |
| Control Included | E-Stop/Up/Down – Optional Variable Speed |
Key Features:
- H4/M5-M6/2m-3m/Class C-Class D duty cycle classification applies to lifting equipment used in high-volume heavy load handling, such as steel handling and manufacturing operations, or in lighter-load automatic cycles like heat treatment, operating up to 30 minutes per hour with a maximum of 300 starts, a 50% operational time factor (K = 0.65), and a life expectancy of 10,000 hours.
- Control System Powered By High PerformanceContactors with a powerful 2.2 kW Motor with IP54IEC Motor Protection
- Standards Compliance and or Certifications ASME/ANSI B30.7, B30.10 / AWS D14.3 /RR-W-410E / ISO 2232 ,,
Technical Specifications:
| MRC Rated Capacity | 1375 lb / 625 kg | Wire Rope Included | °3/8 in x 196 ft / °9mm x 60 m |
| Number of Speeds | 1 Speed – Optional Variable Speed | 1st Layer MRC Capacity | 1378 lb / 625 kg |
| Standard Lifting Height | 200 ft / 60 m | Humidity | <85% |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz | IEC Electric Enclosure Protection | IP65 |
| Speed (f/m) / min | 42 ft / 13 m | IEC Motor Protection | IP54 |
| Control Voltage | 24V | Standards Compliance | ASME/ANSI B30.7, B30.10 / AWS D14.3 /RR-W-410E / ISO 2232 |
| Control Included | E-Stop/Up/Down – Optional Variable Speed | Warranty | 3 Year |
| Motor Model | Electric AC | Drum DL Length | 240 mm |
| Motor Power | 2.2 kW | Drum FD Flange Diameter | °289 mm |
| Drum Brake | Optional | Drum BD Barrel Diameter | °140 mm |
